OB Van · Bratislava

Up to 16 HD cameras.

HD 1080/50i, stereo. HD + SD up/down/cross conversion.

Contact us

Technical info

About us

General information

Standards: HD 1080/50i, StereoHD + SD up/down/cross conversion
Location: Bratislava
Vehicle: OB – Mercedes Benz Vario, BL-611RYSupport – Iveco Eurocargo, BL-294RM
Power consumption: 18 kW max
Power connection: 63A, 5pin, 400V+N+G
Dimensions: Length 8 m; height 3.5 m; width 2.5 m (collapsed)Length 9.5 m; height 3.5 m; width 4.5 m (expanded)
Weight: 9 tons
Dimensions support van: Length 10 m; height 3.5 m; width 2.5 m
Weight support van: 7.5 tons

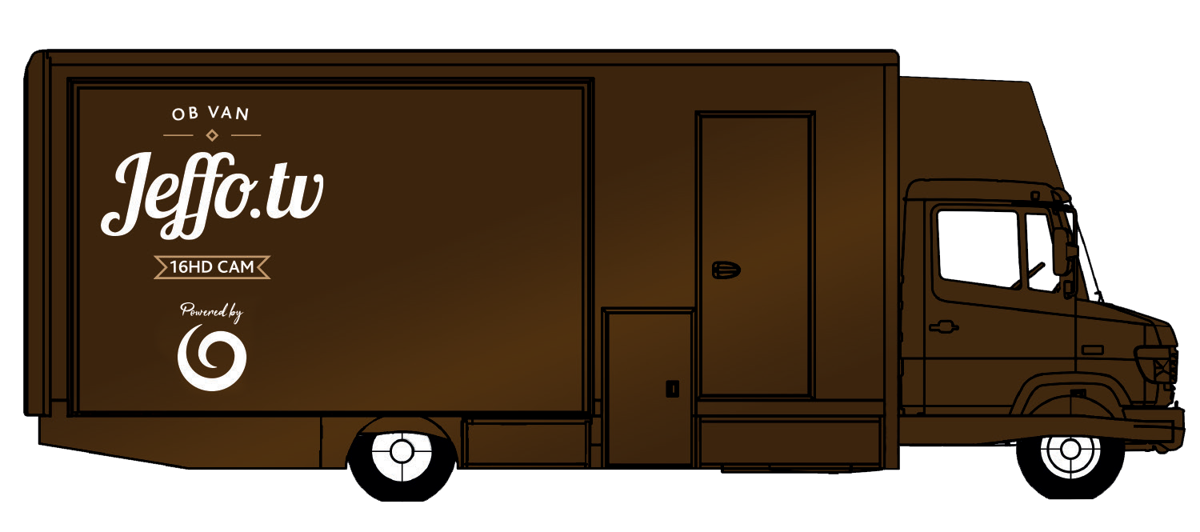

Vehicle

Mercedes Benz Vario

Length 8 m, height 3.5 m, width 2.5 m (collapsed).

Floor plan

OB Van

Length 9.5 m, height 3.5 m, width 4.5 m (expanded).

Download floor plan

Support van

Iveco Eurocargo

Length 10 m, height 3.5 m, width 2.5 m. Weight 7.5 tons.

Download sketch

Vision monitoring

2× 49″ Samsung 4K QLED TV · 1× 55″ Samsung 4K QLED TV · 4× 32″ Samsung 4K QLED display

HD 1080/50i

Equipment

Ikegami, Sony, Blackmagic, AJA, Evertz, Soundcraft, Genelec, RTS, Teradek, Sennheiser, Tektronix, Atomos, Samsung, Hollyland.

Equipment

Video and audio
equipment

Technical info

Cameras

Up to 16 HD cameras

14× Ikegami HDK-73 Lemo, 2× Ikegami UHL-43 box cam, 3× Blackmagic micro studio camera. Optional: Sony HSC 300RF, Sony HDC-P1.

Main router

Network VikinX HD128M

128×128 HD-SDI router.

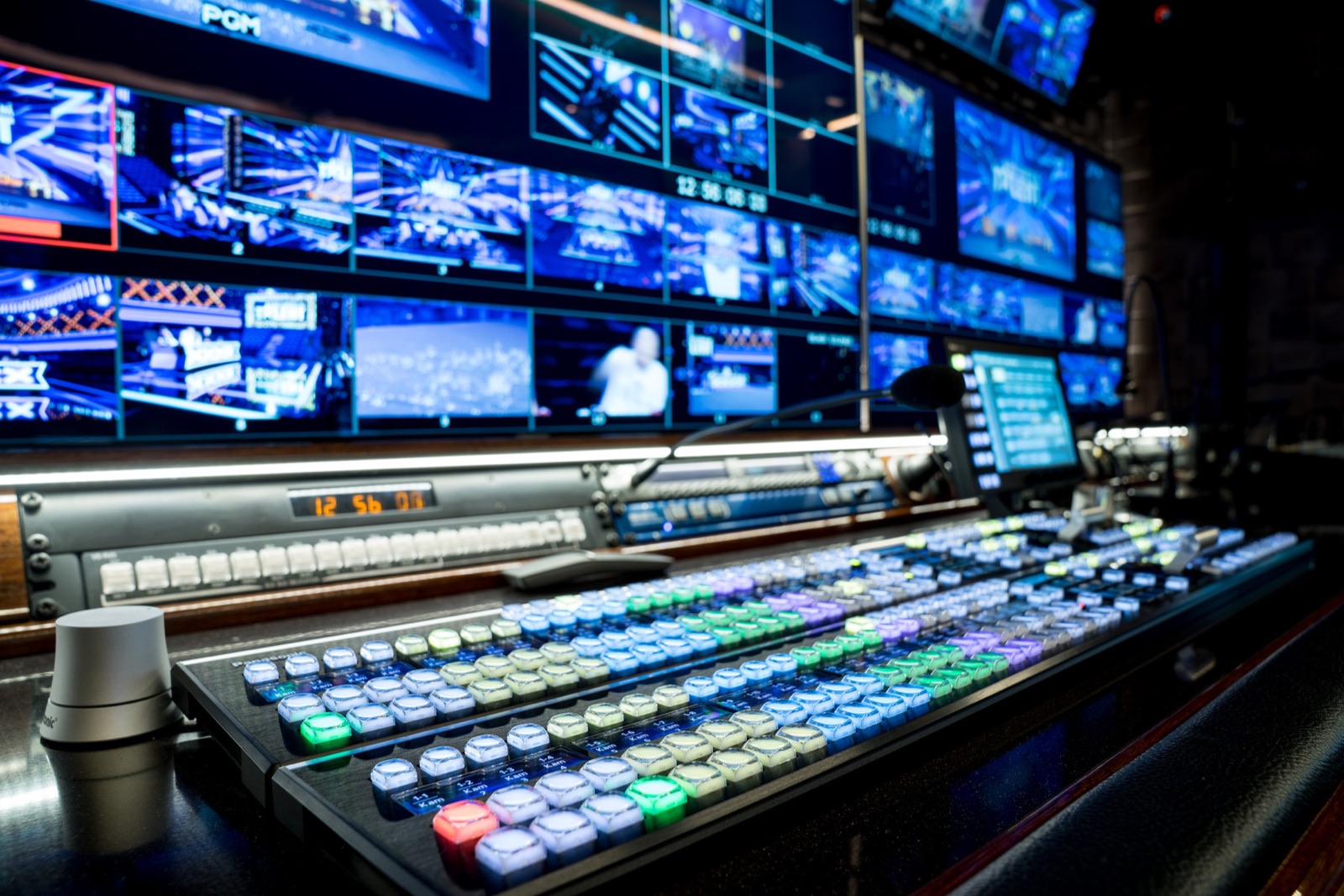

Video switcher

AV-HS6000 2ME

24 XPT. Inputs: 32 SDI and 2 DVI. Output: 16 SDI. Backup: ATEM 4 M/E Broadcast Studio 4K.

PGMPST

Main mixing desk

Soundcraft Vi5000

64 in / 32 out optical stagebox. Monitoring: Genelec 8030/7040, EVE Audio SC203, EVE Audio TS108. Metering: RTW M7 with AES/EBU R128.

Video servers

Evertz DreamCatcher

2× Evertz DreamCatcher, 12 in, 4 out. vMix Replay, 8 in, 2 outputs.

DreamCatchervMix Replay

Multichannel recorder

Quadrus

8 channels, 64 ch audio, EDL record, up to DNX185x codec, 19 TB internal storage.

8 CH

Internal storage19 TB

Wireless & intercom

Wireless

Teradek Bolt6, BOXX Atom H264, wireless CCU control for UHL43. Intercom: RTS Zeus III, Hollyland Syscom.

Teradek Bolt6RTS Zeus IIIBOXX AtomHollyland Syscom

Technical info

Download brochure

Video equipment

Up to 16 HD cameras: 14× Ikegami HDK-73 Lemo2× Ikegami UHL-43 box cam3× Blackmagic micro studio camera
Optional cameras: Sony HSC 300RFSony HDC-P1
Viewfinders: 7″ LCD Color VF or 2″ VF
Wireless: Teradek Bolt6BOXX Atom H264 video transmissionWireless CCU control for UHL43 cameraTeradek Serv Pro + Link / 4ch
Lenses: 6× CJ24ex7.5B3× CJ14ex4.3B1× HJ14EX4.3B2× KJ10EX4.5B1× ZA 12x4.5BEZD-T582× HJ40ex10B1× HJ40ex14B1× Digisuper 991× Digisuper 77and other zoom / wide lenses on demand
Main router: Network VikinX HD128M, 128×128 HD-SDI router
Video switcher: AV-HS6000 2ME Live Switcher24 XPTInputs: 32 SDI and 2 DVIOutput: 16 SDI outputs
Backup switcher: ATEM 4 M/E Broadcast Studio 4K
Digital glue: 2× AJA FS4Lynx
Standard conversion: 2× AJA FS42× BM Teranex AV
Synchroniser: Tascam CG-2000Rosendahl Nanosync
Vision monitoring: 2× 49″ Samsung 4K QLED TV1× 55″ Samsung 4K QLED TV4× 32″ Samsung 4K QLED display
Other monitors: 8× 27″ Dell 4K display4× 17″ Sony PVM A170 OLED2× Tektronix WFM52502× SmartScope Duo 4K2× 13.3″ Lilliput
Video servers: 2× Evertz DreamCatcher, 12 in, 4 out2× operator control panelvMix Replay, 8 in, 2 outputs
Disk recorder: 2× HyperDeck Studio Pro2× HyperDeck Studio Mini1× Blackmagic Duplicator 4K
Instant playout: ProductionAirBox Multiple Channels2× vMix pro
Multichannel recorder: Quadrus – 8 channels recorderwith 64ch audio, EDL recordup to DNX185x codec19 TB internal storageexport-import from-to external media
Backup multichannel recorder: 2× 8 channels Atomos Shogun Studio 2
Optional recorders: 9× HyperDeck Studio HD ProQuadrus – 8 channels recorder
Optional CGs: vMix pro

Audio equipment

Main mixing desk: Soundcraft Vi500064 in/32 out optical stagebox
Microphones: 8× Rode NTG42× Sennheiser MKH416wind and rain protection, stands
Monitoring: Genelec 8030/7040EVE Audio SC203EVE Audio TS108BM Audio Monitor
Metering: RTW M7 with AES/EBU R128
Processing: 2× TC Electronics Finalizer 96k
Playout: Show Cue Systems 16ch
Intercom: RTS Zeus IIIWireless intercom Hollyland Syscom
Other: 2× GSM Hybrid HD + remoteCommentatory Unit GS-CU001R/3
Optional recorder: 64 ch RAID Pyramix system
Other: optional wireless systemvarious microphones (DPA, Shure)in-earTC synchronisation

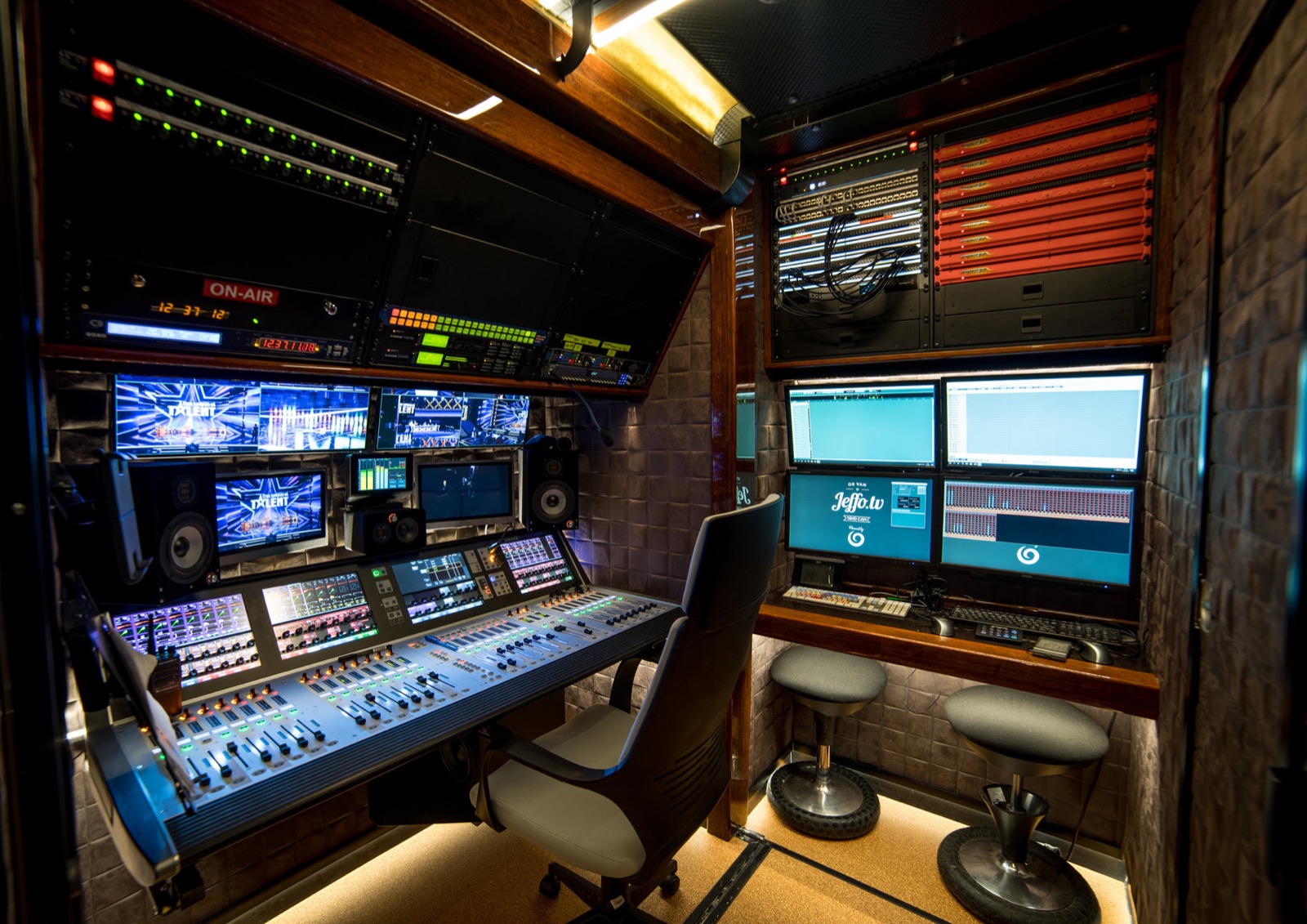

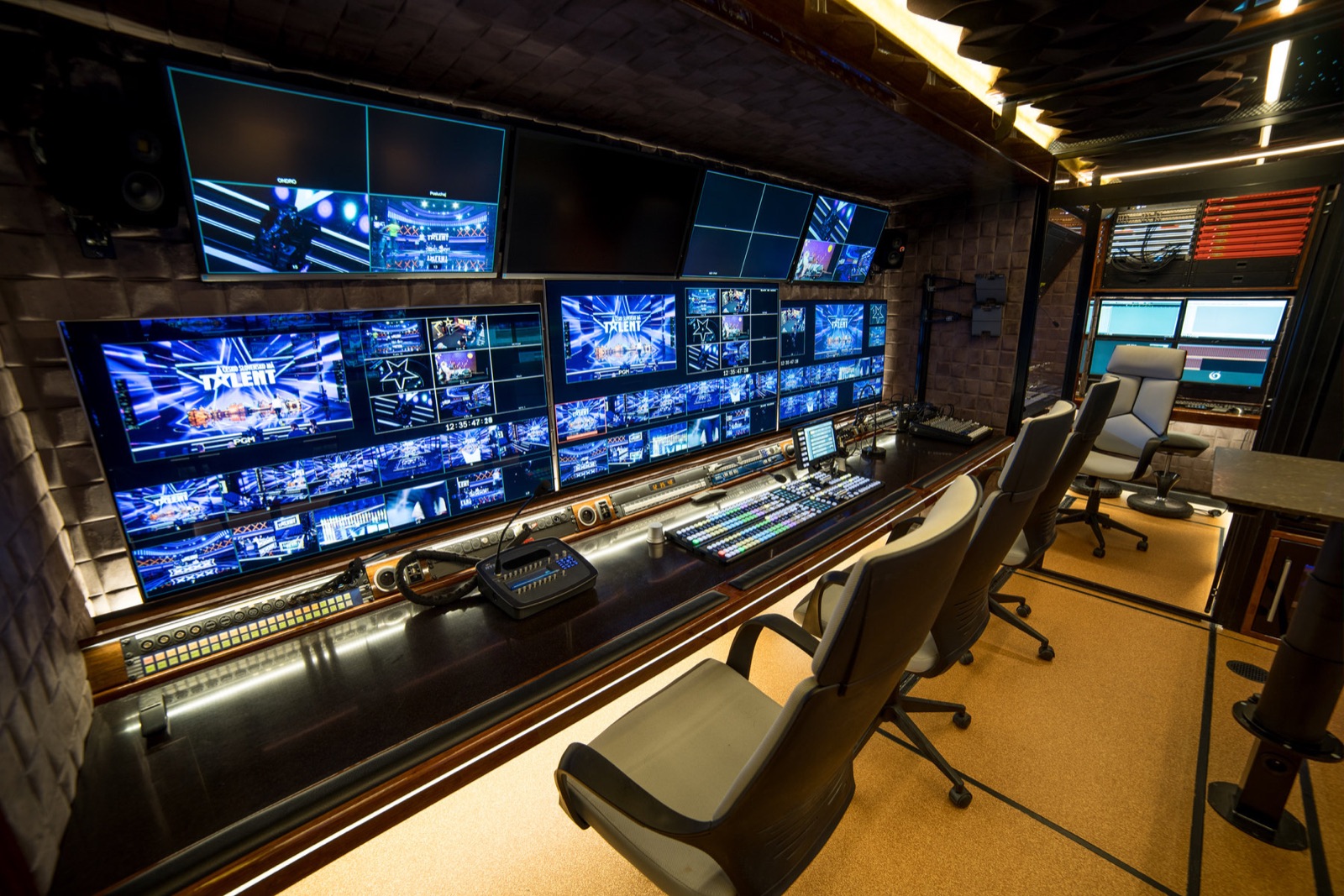

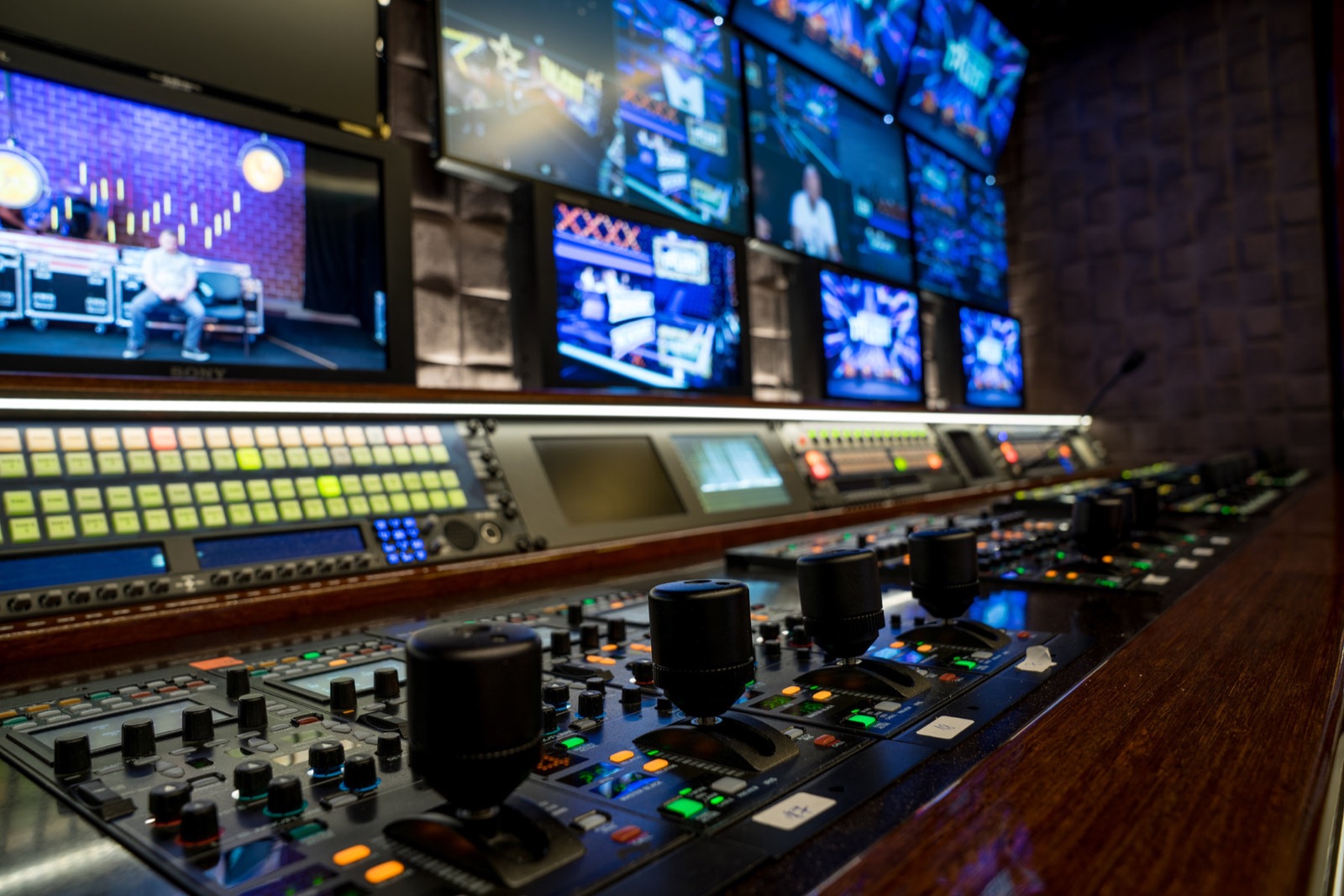

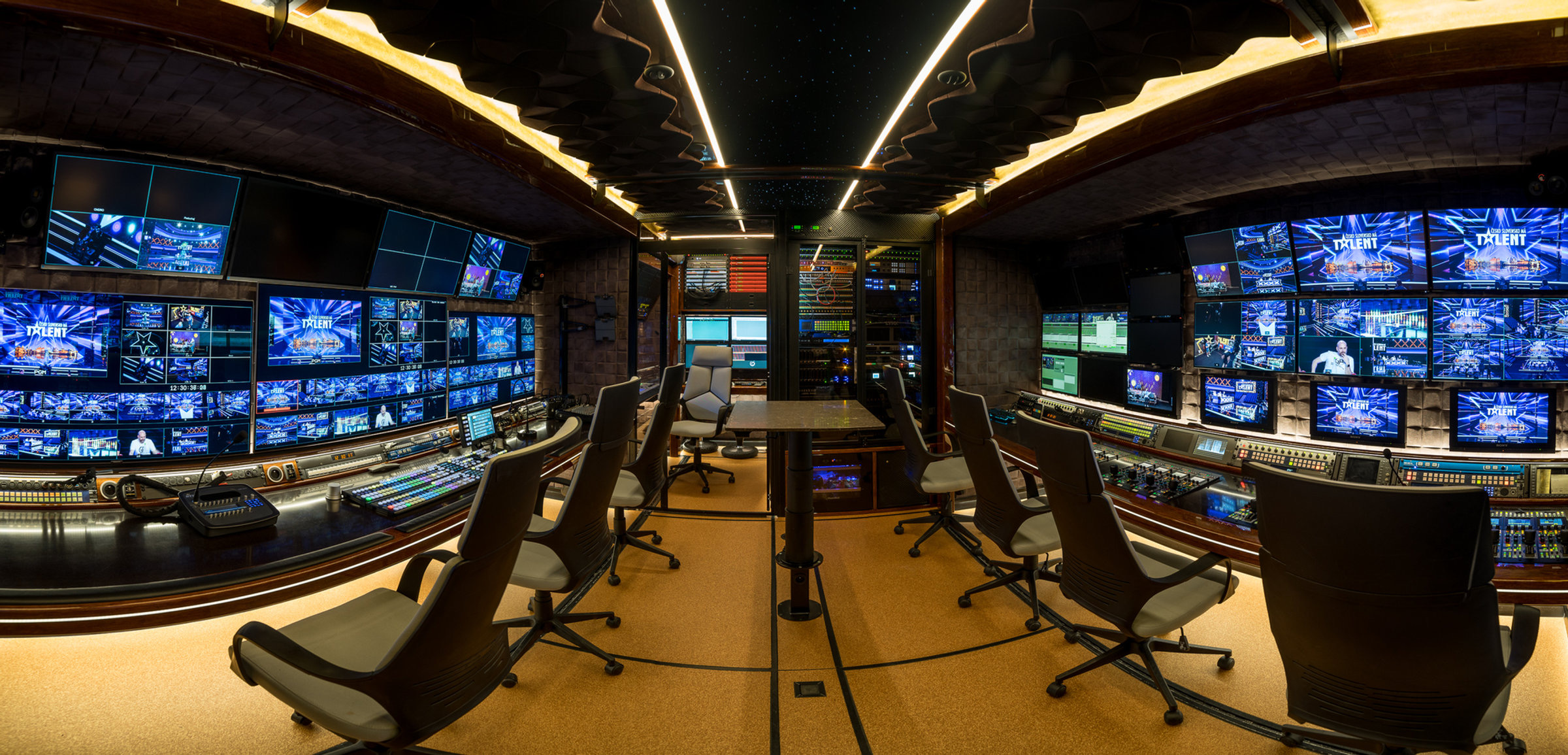

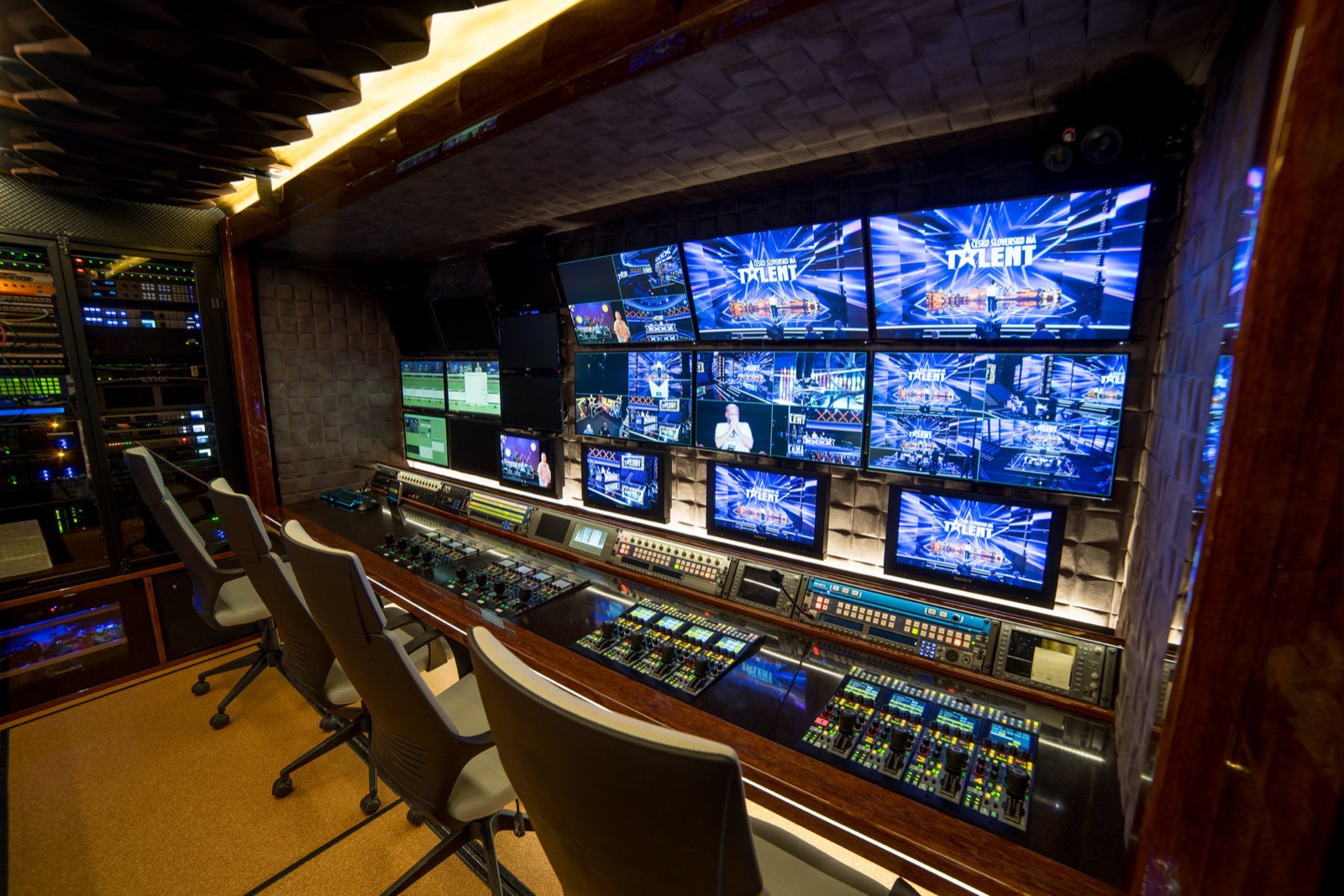

Gallery

Additional equipment

Equipment	Details
Steadicam	Sachtler (ARRI) Artemis
Techno Jib 24′
Techno Jib 15′
2× Jimmy Jib Triangel
Jimmy Jib mini remote head	Load up to 11 kg
2× Orbiter camera seat
2× Gyro cable cam	200 m (opt. 500 m or more)
2× Ronin 2	With Force Pro
